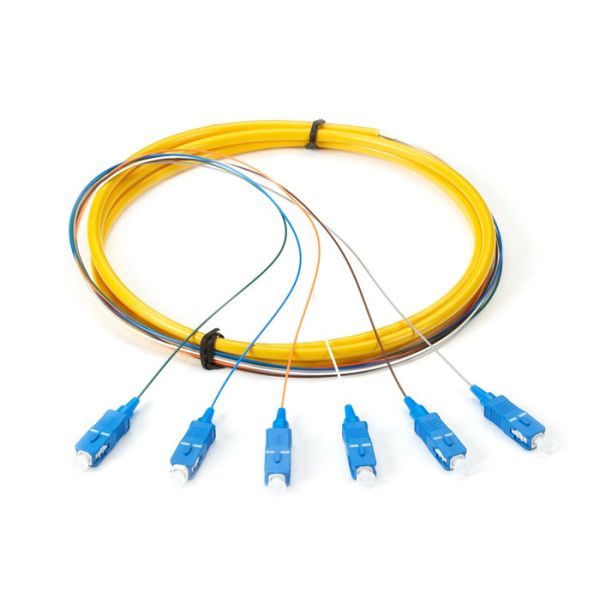

0.9mm SC / APC 24 Core Optic Patch Cords Fiber Pigtail With 4.0mm Boot

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

0.9mm SC / APC 24 Core Optic Patch Cords Fiber Pigtail With 4.0mm Boot

  • 1
  • 2

Brand Name : ODM,OEM, Geehe

Model Number : GH-LC 012

Certification : ISO9001,RoHS, Telocordia/ IEC standards

Place of Origin : Wuhan ,China

MOQ : 10 pcs

Price : Negotiated

Payment Terms : T/T, L/C, Western Union,, D/A, D/P

Supply Ability : 8,000 terminators per day

Delivery Time : Based On Customer's Requirements and negotiate

Packaging Details : Plastic box per pc with Pressure defense sponge, thick outer carton

Model Name : 24 Core Fiber Optic Patch Cord Pigtails

Connector Boot Size : 4.0mm or customize

Cable Jacket : PVC/LSZH

Cable Structure : 0.9mm,4.0mm Cable

Ferrule End Face : APC or UPC

Fiber Count : 2/4/6/8/12/24 Core

Fiber Type : SM 9/125 G652D, G657A1 etc

Application : FTTH FTTB FTTX Network

Cable Length : Customized

Quality Control : 100% Test Before Shipping

Contact Now

0.9mm SC / APC 24 Core Fiber Optic Patch Cords Pigtails With 4.0mm Boot

Brief Description:

Geehe fibre optic patch cords are one of the most commonly used components of the fibre optic network.

Further sub-classification may be on basis of usage (indoor / outdoor / harsh environment certified), cable ( diameter 0.9 / 2.0 / 3.0 / 4.8 / 8.2 mm), armouring & finally customized cable assemblies

FC connectors are the most commonly used patch cords in fibre optic networks where FC stands for fixed connectors. It is fixed by way of threaded barrel housing.

Features:

  1. Nickle plated brass body
  2. Compact design
  3. Available in Singlemode and Multimode type
  4. Specifically designed for low connection loss
  5. Highly stable against mechanical or environmental shock
  6. Extremely low insertion loss and excellent back reflection
  7. Meets Telocordia/ IEC standards,ISO9001/14001,RoHS

Application:

Pigtails are typically used to terminate a optical fiber cable in an ODF (Optical Distribution Framework), and are spliced on the feed-cable. Patchcords are usually deployed to link through patch panels, and to connect patch panels with the optical devices of the final user.

Advantages

  • Fast: Quick delivery thanks to substantial stock of the most commonly used Pigtails & Patchcords.
  • Quality: Highest quality-standard thanks to collaboration with internationally prestigious parties.
  • Flexible: Entirely configurable, client-specific solutions are available in no time.
  • Complete: Pigtails and Patchcords are available in customised form in combination with, for example, connectors, patch drawers, and ODF’s.
  • Competitive: The best quality for a competitive price.

Specification:

Specification
Parameter Unit Index
End-Face Type PC UPC APC
IL dB SM: ≤0.3；MM ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
RL SM dB ≥50 ≥50 ≥50
MM dB ≥36(Exclusive APC Connector)
Mating Times ＞1000
Operating Temperature ℃ -40~ +80

Ordering Information:

OFC -X -XX -XX -XX -X -X
S: Simplex
D: Duplex		 LA:FC/APC LC:FC/UPC LP:FC/PC LA:FC/APC LC:FC/UPC LP:FC/PC 09:0.9mm 20:2.0mm 30:3.0mm 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others 0.5:0.5m
1.0:1.5m
10:10.0m
Fiber Mode Connector Type Conector Type Cable Diameter Fibe Type Fibe Length

Product Package

0.9mm SC / APC 24 Core Optic Patch Cords Fiber Pigtail With 4.0mm Boot
